Military & Logistic guys, and vets .. what is this thing please

[Deputy Swan]

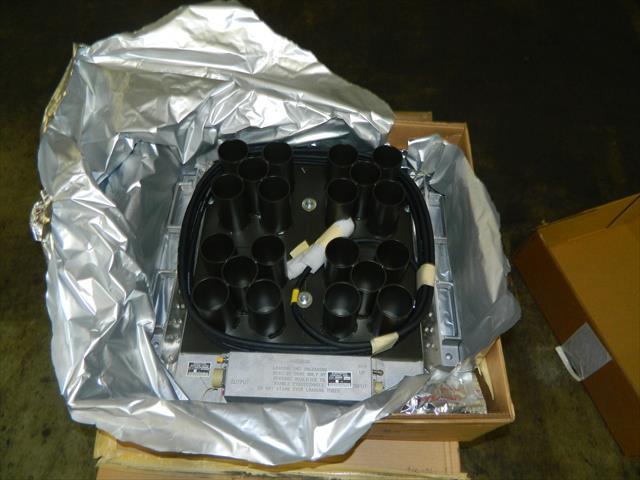

Hello, I need help on this.. has anybody ever used this or know what the hell it does,or how it works? I cant find anything on the Internets about it besides its supply class.. its worth $1000 I see it on a surplus site for sale.

It is described as:
POWER REQUIREMENTS,12 + 1 VDC 1.5MINIMUM DURATION .450 MILLISECONDS; MINIMUM IGNITION CURRENT,32 MILLIWATT SECONDS/OHM;RATE OF FIRE,MINIMUM OF 10SECONDS BETWEEN SHOTS;SOUND LEVEL,175 DB;NUMBER OF FIRING TUBES,20;CARTRIDGETYPE,A-50 MM PYROTECHNIC CARTRIDGE M21(NSN 1370-01-034-1397)B-STEEL-ON-STEELPYROTECHNIC CARTRIDGE C-SMOKE PYROTECHNIC;ENVIRONMENTAL,TEMPERATURE,-32 DEG C TO 65 DEG C (-35 DEG F TO 149 DEG F),RELATIVE HUMIDITY,5 TO 95 PERCENT,LOW PRESSURE LIMIT,16.9 HG (15,000 FT. ALTITUDE)WATERTIGHT,3-FOOTHEAD;DIMENSIONS,TARGET KILL SIMULATOR DEVICE,20 IN. W X 10 IN. H X 26 IN. L,POWER INPUT CABLE ASSEMBLY,10 METERS (33 FEET),WEIGHT,116 POUNDS

Assuming it shots these?: http://margosupplies.com/public/american1/scare/pyro_launchers/pyro.htm



[HomebrewerCraig]

From what I can find it's an artillery flash simulator.

https://books.google.com/books?id=q...MDAG#v=onepage&q=NSN 1370-01-034-1397&f=false



[1968USMC]

Here is the tech manual for it.
http://www.liberatedmanuals.com/TM-9-6920-742-24P-2.pdf
Looks like that is only one part of it at least of what I can see in your picture. Look at the manual it shows all the parts for it
Note: According to the manual Some sort of compressed gas is required.



[1968USMC]

Here is a great resource site for military stuff http://www.liberatedmanuals.com/



[1968USMC]

My best guess this is the types of ammo for it http://militarynewbie.com/wp-conten...unition-Data-Sheets-Military-Pyrotechnics.pdf
