New Build is Up and Running!

NotAnalGrap

NotAnalGrap

Assistant to the Regional Leadership Manager
Admin
Joined
Jan 13, 2013
Messages
5,996
There were some painful moments involving my Corsair H100i not seating properly and I eventually changed pastes and positioned it correctly. Only real changes is the i7 4770k and and went with the Asus Sabertooth z97 Mark 1.

Some before pics:

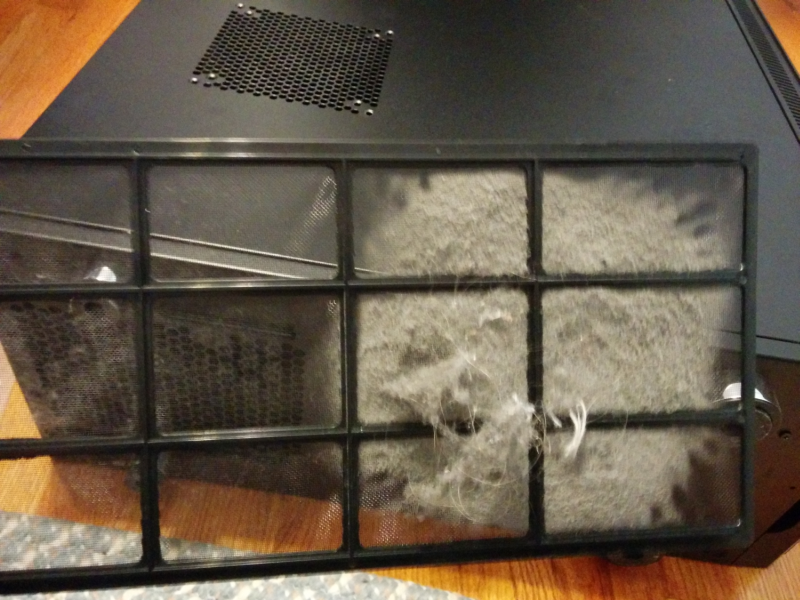

My intake fan from the bottom of the case was nasty! Glad my case has that filter:

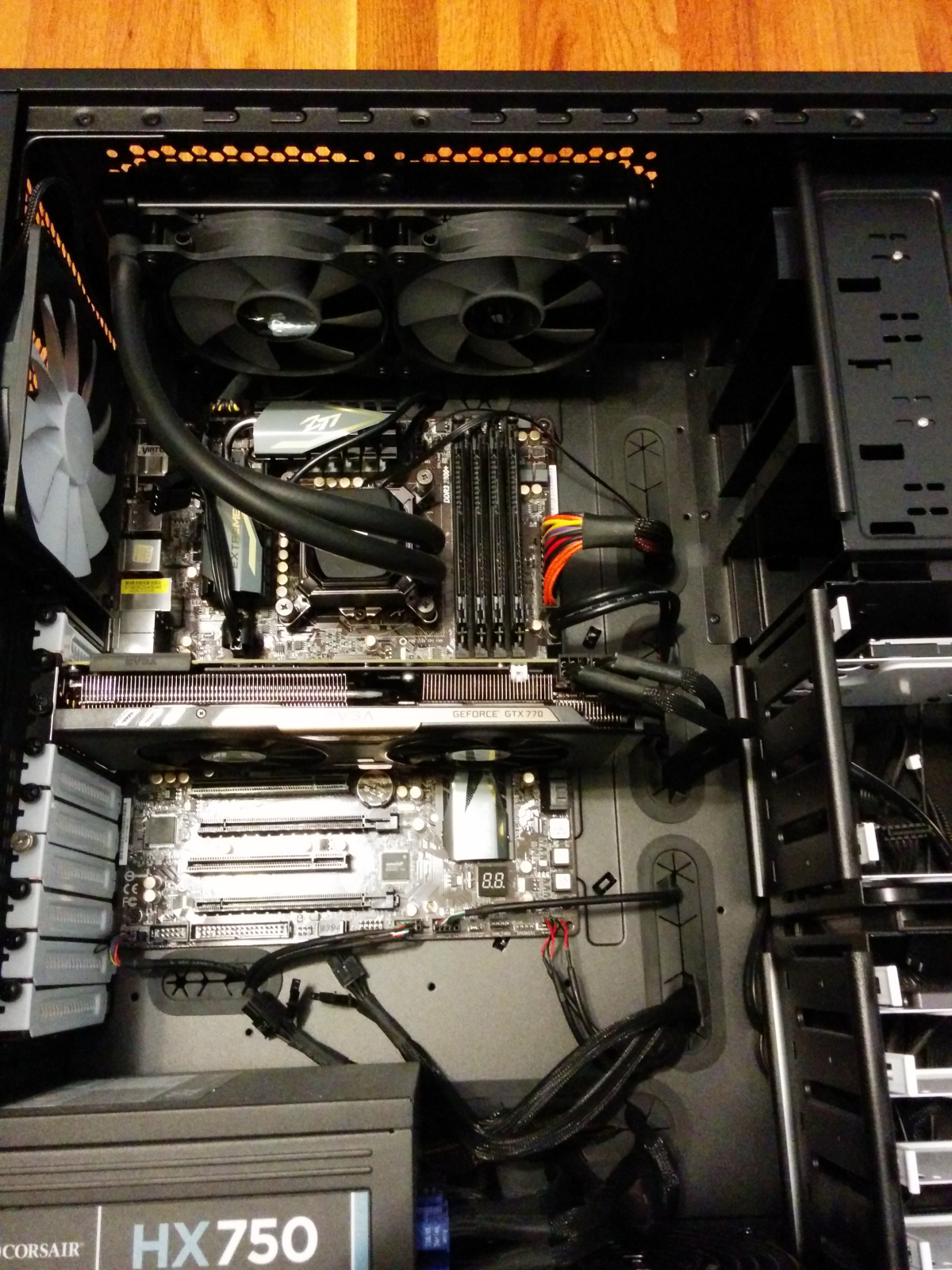

Old setup with ASrock Mobo and i5 3750k

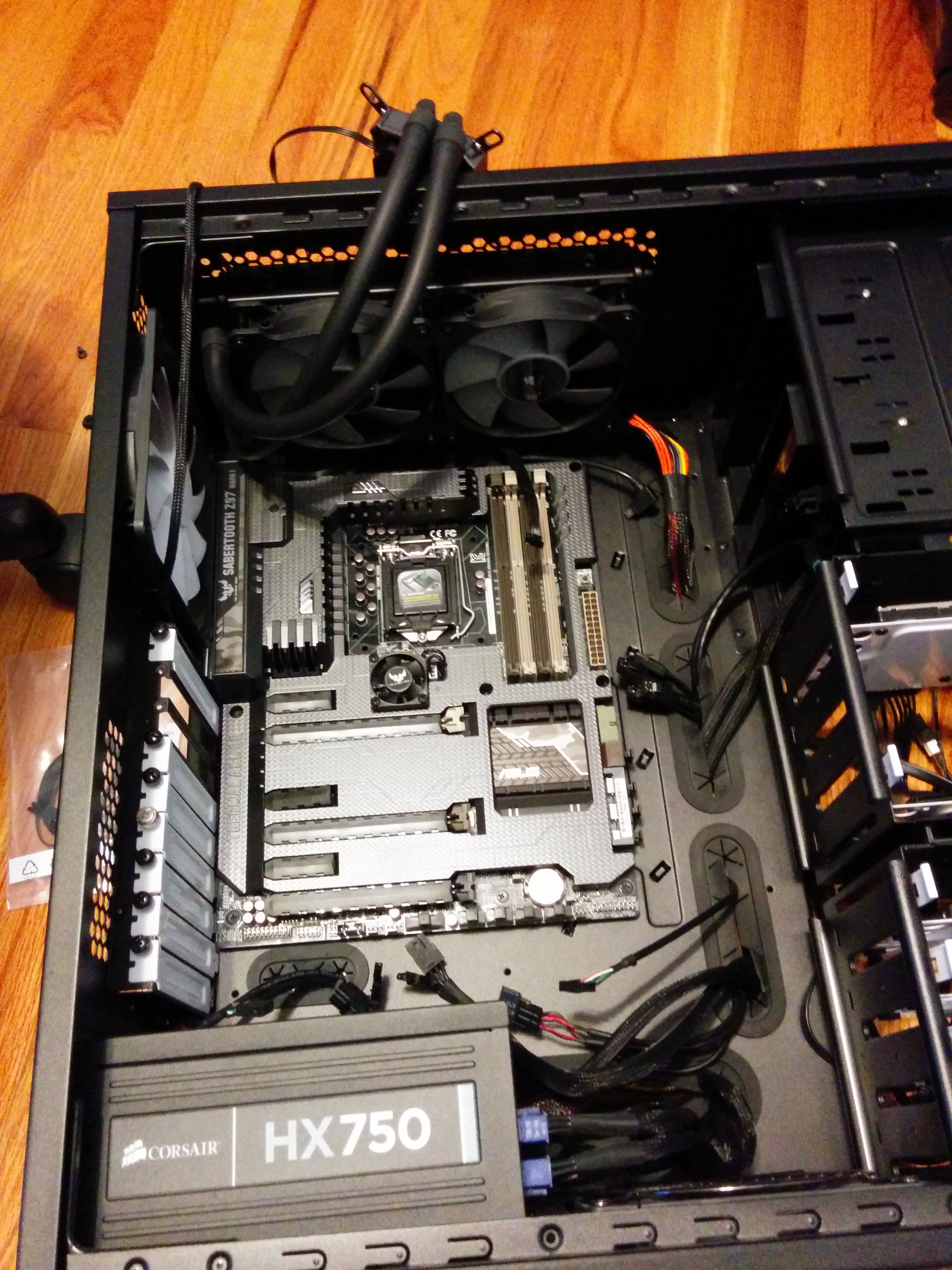

New mobo being installed:

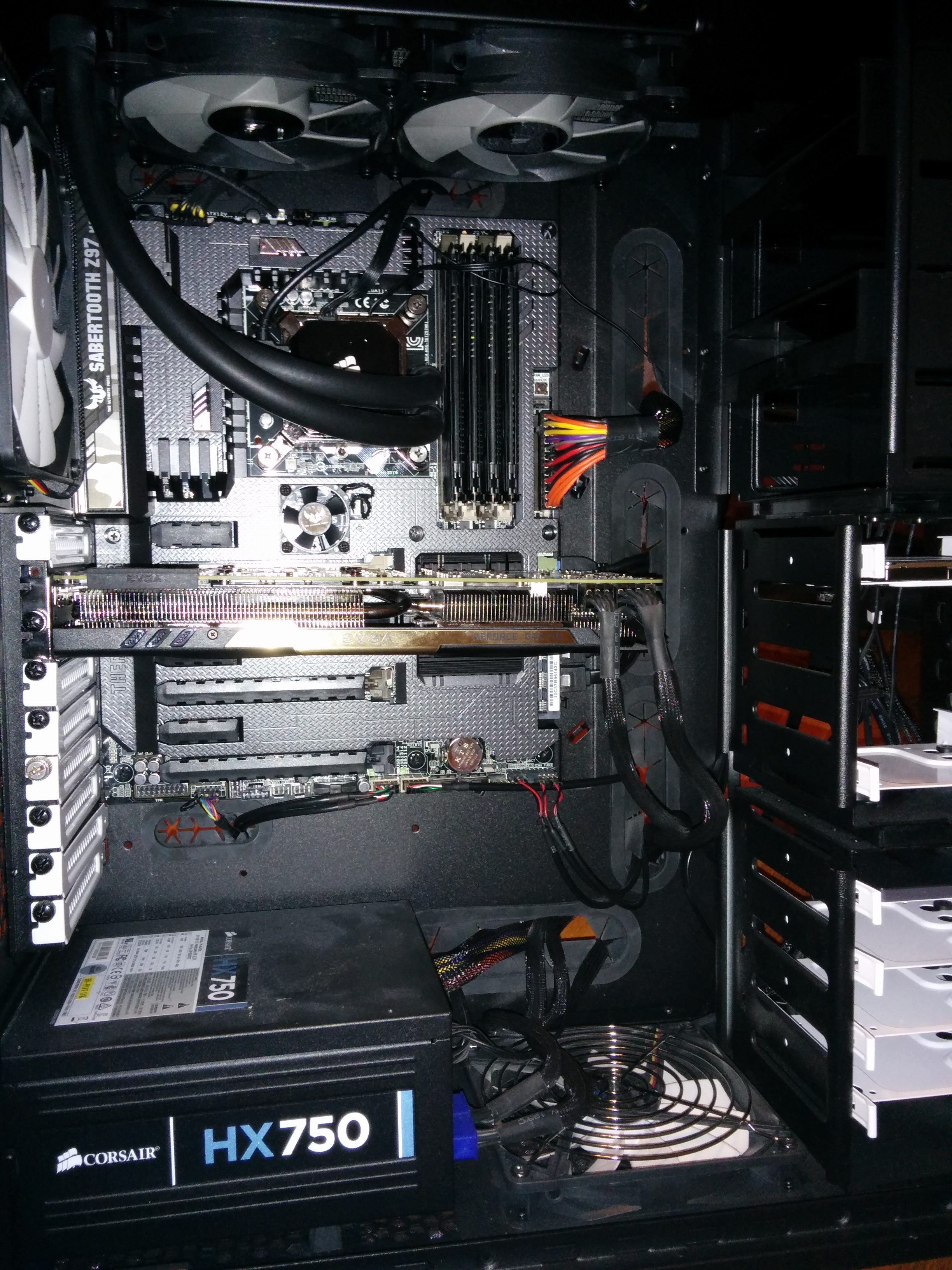

New Mobo installed:


So right now I am working on the overclocking. Trying to figure out some of the new stuff and the new Asus bios seems more complex.

Anyone know if I really have to care about anything except the multiplier and the vcore voltage?

DocHolliday said:
So right now I am working on the overclocking. Trying to figure out some of the new stuff and the new Asus bios seems more complex.

Anyone know if I really have to care about anything except the multiplier and the vcore voltage?
Click to expand...

Grats on the build. You don't even have to mess with the Voltage sometimes depending on the chip you ended up with, but if you do then that would be all you have to mess with.

It actually is a 140mm also. Its just the angle I think that makes it look so beastly!

Looking good though! I think I am gunna get a diff PSU next year and work on getting my cables cleaned up. Dusty shit...you got pets?

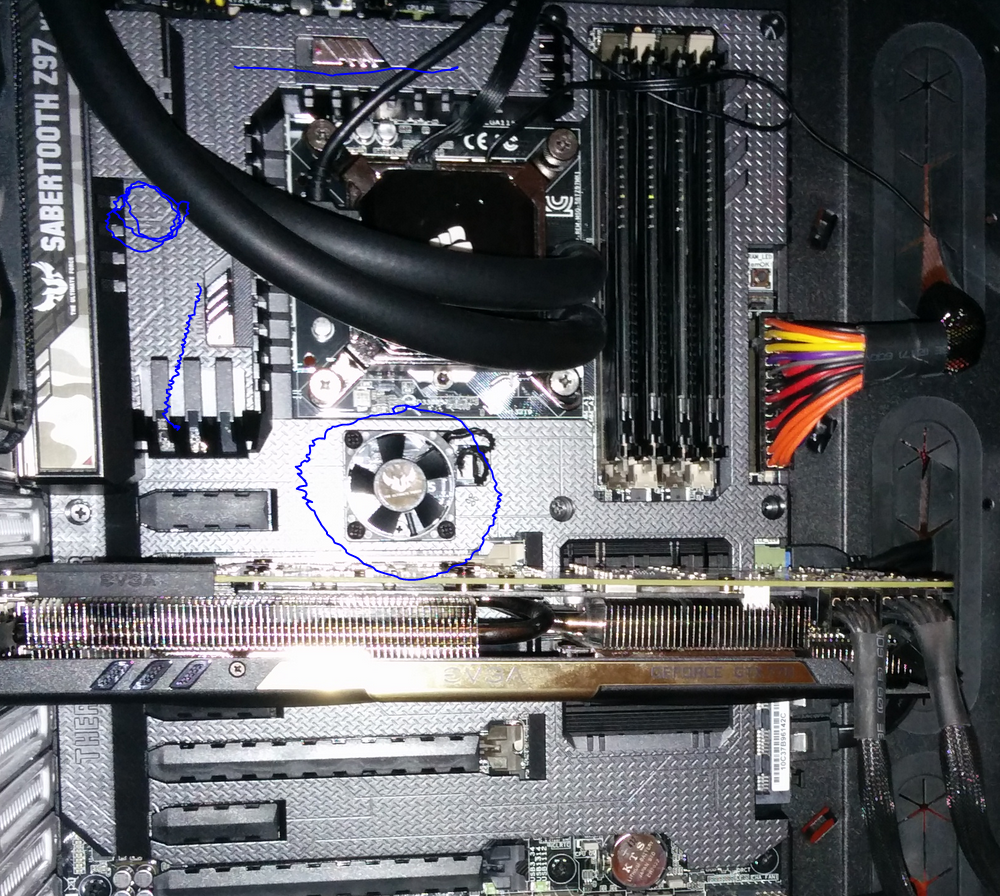

Could be a to cool the Northbridge, I've brought one for my last couple mobo's.

Nice kit out Doc

I love my ASRock. Good looking build. Too bad my build pics are lost on my stolen cell phone.

Yeah that is a sweet rig for sure doc congrats. I agree with snake the diamond plate is pretty fucking sick.
